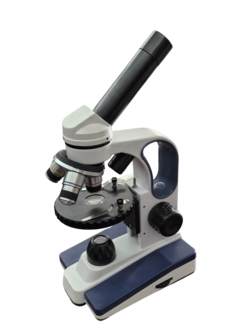

Microscope BMS 037 LED
Two microscope types in ONE - incident and transmitted light microscope!
The new BMS 037 LED is an ideal starter microscope.
The microscope's stability is optimized by the robust stand and base construction. Because of its cleverly placed handle in the stand, the BMS 037 LED will move effortlessly wherever you need it to be.
The enhanced LED illumination combines the advantages of an incident light type with a transmission type to a handy combined microscope. The transmitted and incident light is separately operable and are adjustable by a dimmer.
This microscope has a 10x widefield eyepiece mounted at a 45-degree angle for comfort. The triple nosepiece features 4x, 10x, 40x objectives with a total magnification of 400x. The fixed condensor N.A. 0,65 is provided with a disc diaphragm to adjust the amount of light coming through the specimen slide. This BMS 037 LED may be a basic starter microscope but its optics are far better than you might expect from its low price. It is a very good value that will let you observe a hidden realm of detail and structure within everyday objects that is totally invisible to the unaided eye.
Specifications
- Eyepiece: WF 10x/18 mm, locked
- Tube: 45º inclined
- Head: 360º rotatable
- Focusing mechanism: coarse focusing knobs
- Nosepiece: triple
- Objectives: DIN achromatic 4x, 10x and 40x (spring loaded)
- Stage: round floating stage with 2 stage clips and slide protection
- Condenser: fixed, N.A. 0,65 with a disc diaphragm
- Illumination: 1 LED incident and 1 LED transmitted light; incident light only suitable for the 40x and 100x magnification range
- Magnification: 40x, 100x and 400x
- Power supply: through 3 rechargeable AA batteries
Including: dust cover, manual, 3 rechargeable AA batteries and charger with charge indicator
