4K HD HDMI camera
The Camera HDMI & USB, 4K HD, USB mouse, USB stick, camera is the next-generation live-view imaging-system with 4K resolution(Video) at 30 FPS. It comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary colour mosaic filters.
The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via USB for image-capture and video-recording.
Hardware 3D denoising, sharpness and tone mapping control functions greatly improve the image and video quality.
The included BMS_pix3 Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a BMS_pix3 lite version of the software which can capture video and still images, and includes limited processing features.
The Camera HDMI & USB, 4K HD, USB mouse, SD-card camera is intended to be used for the acquisition of digital images from the stereo microscope, biological microscope or online interactive teaching.
| Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G Sensitivity
Dark Signal |
FPS/Resolution |
Binning |
Exposure |
| The Camera HDMI & USB, 4K HD |
4K/Sony IMX334(C)
1/1.8"(7.68x4.32) |
2.0x2.0 |
505 mv with 1/30s
0.13 mv with 1/30s |
30@3840x2160(HDMI)
20@3840x2160(USB) |
1x1 |
0.04ms~1000ms |

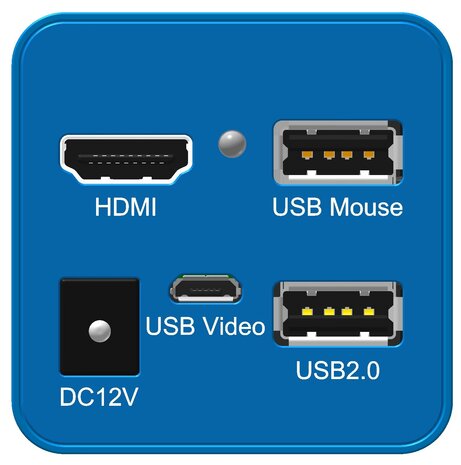

| Interface or Button |
Function Description |
| HDMI |
Comply with HDMI1.4 standard. 4K or 1080P format video output for standard monitor; |
| LED |
LED status indicator |
| USB Mouse |
Connect USB mouse for easy operation with embedded software |
| DC12V |
Power adapter connection (12V/1A) |
| USB Video |
Connect PC or other host device to realize video image transmission |
| USB2.0 |
Connect USB flash disk for capturing video and image storage |
| Video Output Interface |
Function Description |
| HDMI Interface |
Comply with HDMI1.4 standard 30fps@4K or 30fps@1080P |
| USB Video Interface |
Connecting USB Video port of PC for video transfer MJPEG format video |
| Other Function |
Function Description |
| Video Saving |
Video format：8M(3840*2160) H264/H265 encoded MP4 file
Video saving frame rate:30fps |
| Image Capture |
8M (3840*2160) JPEG/TIFF image in SD card |
| Measurement Saving |
Measurement information saved in different layer with image content
Measurement information is saved together with image content in burn in mode |
| ISP |
Exposure(Automatic / Manual Exposure) / Gain， White Balance(Manual / Automatic / ROI Mode)， Sharpening， 3D Denoise， Saturation Adjustment， Contrast Adjustment， Brightness Adjustment， Gamma Adjustment， Color to Gray， 50HZ/60HZ Anti-flicker Function |
| Image Operation |
Zoom In/Zoom Out, Mirror/Flip, Freeze, Cross Line, Overlay, Embedded Files Browser, Video Playback, Measurement Function |
| Embedded RTC(Optional) |
To support accurate time on board |
| Restore Factory Settings |
Restore camera parameters to its factory status |
| Multiple Language Support |
English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Japanese / Italian / Russian |
| Software Environment under LAN/WLAN/USB Video Output |
| White Balance |
Auto White Balance |
| Color Technique |
Ultra-Fine Color Engine |
| Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System |
Still Picture or Movie |
| Operating System |
Microsoft® Windows® 10 /11(32 & 64 bit) |
| OSx(Mac OS X) |
| Linux |
| PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 4GB or More
Display:19” or Larger
CD-ROM |
| Operating Environment |
| Operating Temperature (in Centidegree) |
-10°~ 50° |
| Storage Temperature (in Centidegree) |
-20°~ 60° |
| Operating Humidity |
30~80%RH |
| Storage Humidity |
10~60%RH |
Potiential Application
- Scientific research, education (teaching, demonstration and academic exchanges);
- Digital laboratory, medical research;
- Industrial visual (PCB examination, IC quality control);
- Medical treatment (pathological observation);
- Food (microbial colony observation and counting);
- Aerospace, military (high sophisticated weapons);
