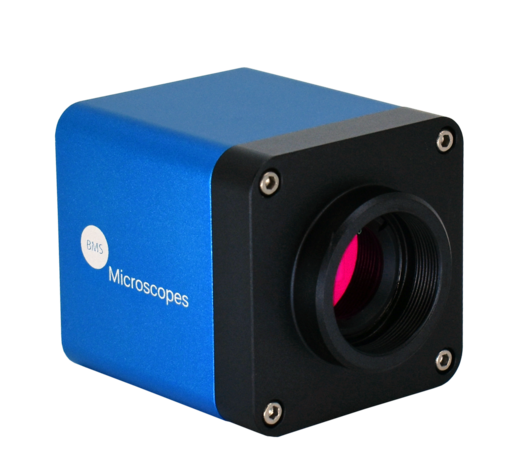

HDMI camera
Through standard HDMI interface to stream the video to displayer or HDTV. Easy connecting to other equipment with the C-mount optical interface.
High-resolution and high frame rate, perfect colour reproduction, highly integrated and compact, low failure rate and stable performance.
1280 x— 720 (720P) resolutions to match the current high-definition displayer on the market.
The camera characteristic can be controlled by the mouse.
For the above characteristic and technical features, which utmost meet various applications and widely apply to industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.
| |
Sensor & Size(mm) |
Pixel(um) |
G Responsivity
Dynamic range
SNRmax |
FPS/Resolution |
Binning |
Exposure |
|
|
1.2 M/AR0130(C)
1/3" (4.8x3.6)
|
3.75x3.75
|
6.5 V/lux-sec
85.3dB
44dB
|
30@1080x720
|
1x1
|
0.21 ms~2000 ms
|
| |
2M/IMX222(C)
1/2. |
|
Shipping Weight
|
0.47 kg (0.55lbs)
|
| OPERATING ENVIRONMENT |
|
Operating Temperature
|
-10 °C ~ 50 °C
|
|
Storage Temperature
|
-20 °C ~ 60 °C
|
|
Operating Humidity
|
30~80% RH
|
|
Storage Humidity
|
10~60% RH
|
|
Power Supply
|
DC 12 V/1 A Power Adapter
|
| OPTIONAL ACCESSORIES |
|
Lens
|
C-mount Lens
|
|
Cable
|
HDMIe
|
|
Memory Card
|
SD Card
|
|
Mouse
|
USB Mouse/USB Wirless Mouse
|

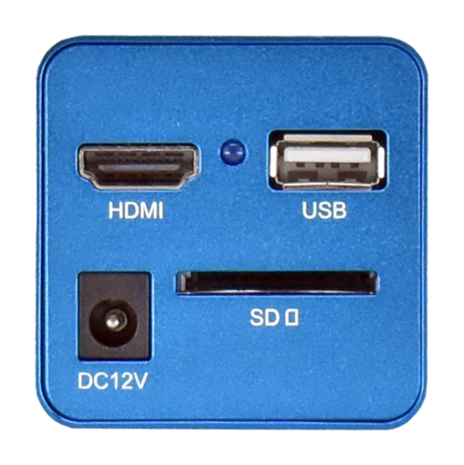

Function Key Description
The camera light indicator flashes about 15 s after the power on. The camera will load software, and then the system begins to work. Auto exposure and white balance are the default state now.
- HDMI: The HDMI output port connected to the HDMI diaplayer;
- USB: USB mouse;
- DC: 12 V/1 A;
- LED: The blue LED indicator;
- SD: SD card slot;
Move mouse to the bottom of the HDMI displayer, the bottom toolbar will be available.
