This BMS camera is without Wifi & RJ45. If you need BMS camera with these functions please check item code 76604K8MPA

Artikelnummer

766044K8MPA

EAN

8714681383298

Variatie: Camera, 4K, 8Mp, HDMI+USB+SD card

Op verlanglijst

| Meer

Heeft u een vraag over dit product?

Stel ons uw vraag

766044K8MPA Series HDMI/GE/WLAN Multi-outputs C-mount CMOS Camera(3)

The 766044K8MPA series camera is the next-generation live-view imaging-system with 4K resolution(Video) at 60 FPS. It comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.

The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via Gigabit Ethernet (GE) for image-capture and video-recording.

Hardware 3D denoising, sharpness and tone mapping control functions greatly improve the image and video quality.

The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features. The HDMI 4K series camera is intended to be used for the acquisition of digital images from the stereo microscope, biological microscope or online interactive teaching.



Order Code Sensor & Size(mm) Pixel(μm) G Sensitivity
Dark Signal
FPS/Resolution Binning Exposure
766044K8MPA

4K/Sony IMX334(C)
1/1.8"(7.68x4.32)
2.0x2.0 505 mv with 1/30s
0.13 mv with 1/30s
60@3840x2160(HDMI)
60@1920x1080(HDMI)
30@3840x2160(WiFi,GE)
1x1 0.1ms~2000ms
766044K8MPA Sony IMX485(C)
1/1.2"(11.14x6.26)
2.9x2.9 2188mv with 1/30s
0.39mv with 1/30s
60@3840*2160(HDMI)
30@3840*2160(NETWORK)
30@3840*2160(USB)
1x1 0.1ms~2000ms
766044K8MPA 4K/Sony IMX183(C)
1/1.06"(13.06x7.27)
2.4x2.4 461 mv with 1/30s
0.21 mv with 1/30s
30@3840x2160(HDMI)
30@1920x1080(HDMI)
30@3840x2160(WiFi,GE)
1x1 0.1ms~2000ms

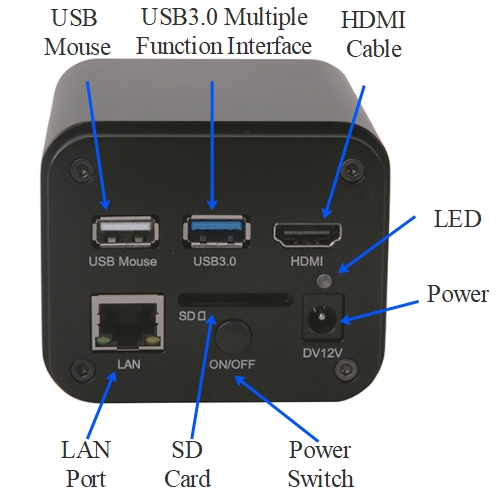

Interface & Button Functions

USB Mouse Connect USB mouse for easy operation of the embedded XCamView software
USB3.0 Connect USB flash disk for image or video storage; Connecting 5G WLAN adapter as WLAN camera in AP or STA mode;
HDMI Comply with HDMI2.0 standard. 4K/1080P format video output and supporting auto switching between 4K and 1080P format according to the connected display resolution
GE Gigabit Ethernet port to connect to the peripheral for the video streaming
SD Comply with SDIO3.0 standard and SD card could be inserted for the images or videos storage
DC12V Power adapter connection (12V)
ON/OFF Power Switch
LED Camera status indicator


Other Specification for HDMI Output
UI Operation With USB Mouse
Image Capture 8M (3840*2160) JPEG Image in SD Card or USB Flash Disk
16M (5440*3060) JPEG Image in SD Card or USB Flash Disk
Video Record Video Format:8M(3840*2160) H264 Encoded MP4 Format
Video Recording Frame Rate:50~60FPS(XCAM4K8MPA), 26~30FPS(XCAM4K16MPA)(related with the SD card speed class and video resolution)
Camera Control Panel Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
Toolbar Including Zoom, Mirror, Comparison(Video~image, image~image, Freeze, Cross, Browser Function
Other Specification for GE Output
White Balance Auto/Manual/ROI White Balance
Color Technique Ultra-Fine Color Engine (USB)
Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System Still Picture or Video
Software Environment (for USB2.0 Connection)
Operating System Support Windows 8/10 &11 (32 & 64 bit), OSx (Mac OS X) & Linux
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 4GB or More
Ethernet Port: RJ45 Ethernet Port
Display:   19” or Larger
CD-ROM
Operating Environment
Operating Temperature(in Centidegree) -10~ 50
Storage Temperature(in Centidegree) -20~ 60
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 12V/2A Adaptor
Overall Dimensions
Width x Depth x Height 98.3 mm (3.87”) x 65 mm (2.56”) x 78mm (3.07”)
Shipping Weight 0.47 kg (1.0lbs)

Potiential Application

  • Scientific research, education (teaching, demonstration and academic exchanges);
  • Digital laboratory, medical research;
  • Industrial visual (PCB examination, IC quality control);
  • Medical treatment (pathological observation);
  • Food (microbial colony observation and counting);
  • Aerospace, military (high sophisticated weapons);

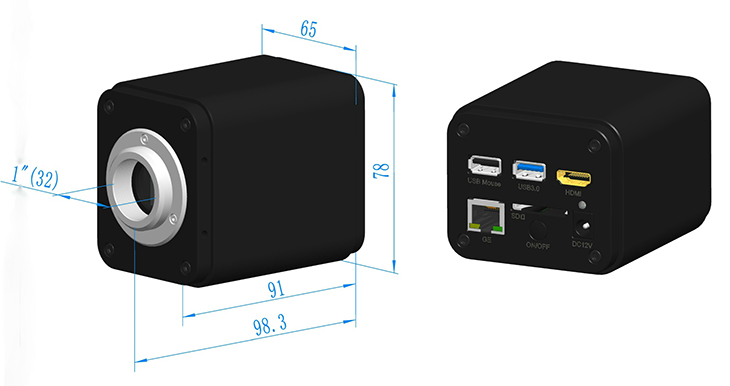

766044K8MPA Series HDMI/GE C-mount CMOS Camera Dimension

Installation drawings(Click to enlarge). The XCAM4K series camera body, made from tough, CNC aluminium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

Dimension for XCAM4K Series HDMI/GE C-mount CMOS Camera
