BMS 100 FL LED, USB-C
The BMS 100 FL LED combines reliable optics, robust construction and convenient low-voltage USB-C power for safer everyday classroom use.

Artikelnummer

2760612

EAN

8719244294299

Voorraad :


Op verlanglijst
Bekijk

Heeft u een vraag over dit product?

Stel ons uw vraag

+31104584222

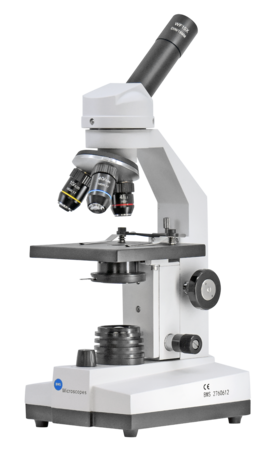

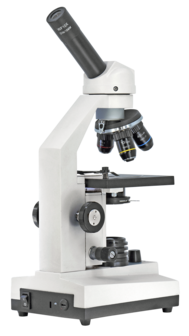

BMS 100 FL LED, USB-C

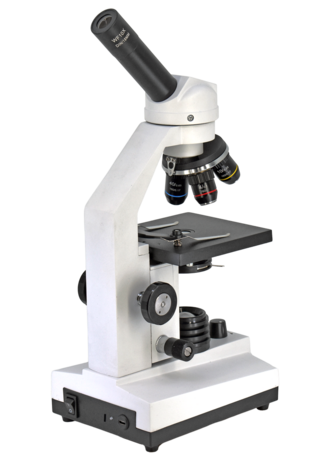

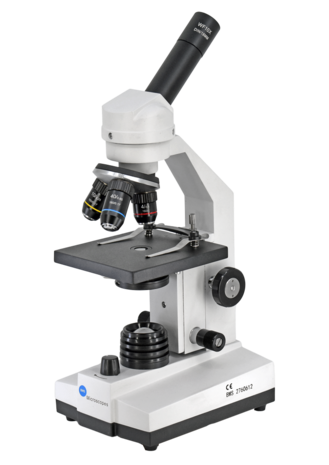

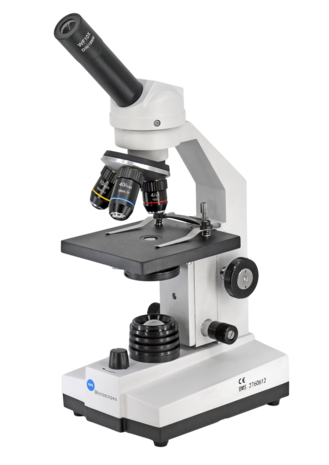

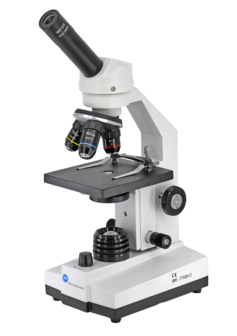

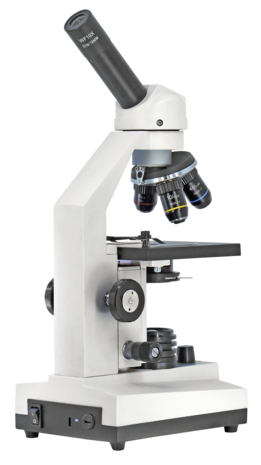

The BMS 100 FL LED is one of the best-selling microscopes in the BMS educational range and is now available with convenient USB-C connectivity. It combines clear, consistent optical performance with a robust all-metal construction for intensive daily use in schools, training centres and laboratories. Low-voltage USB-C power means that no 230V connection enters the microscope directly, supporting safer handling in classrooms. The cable is easy to replace and all essential accessories are included for immediate use.

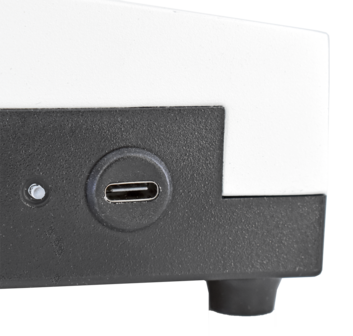

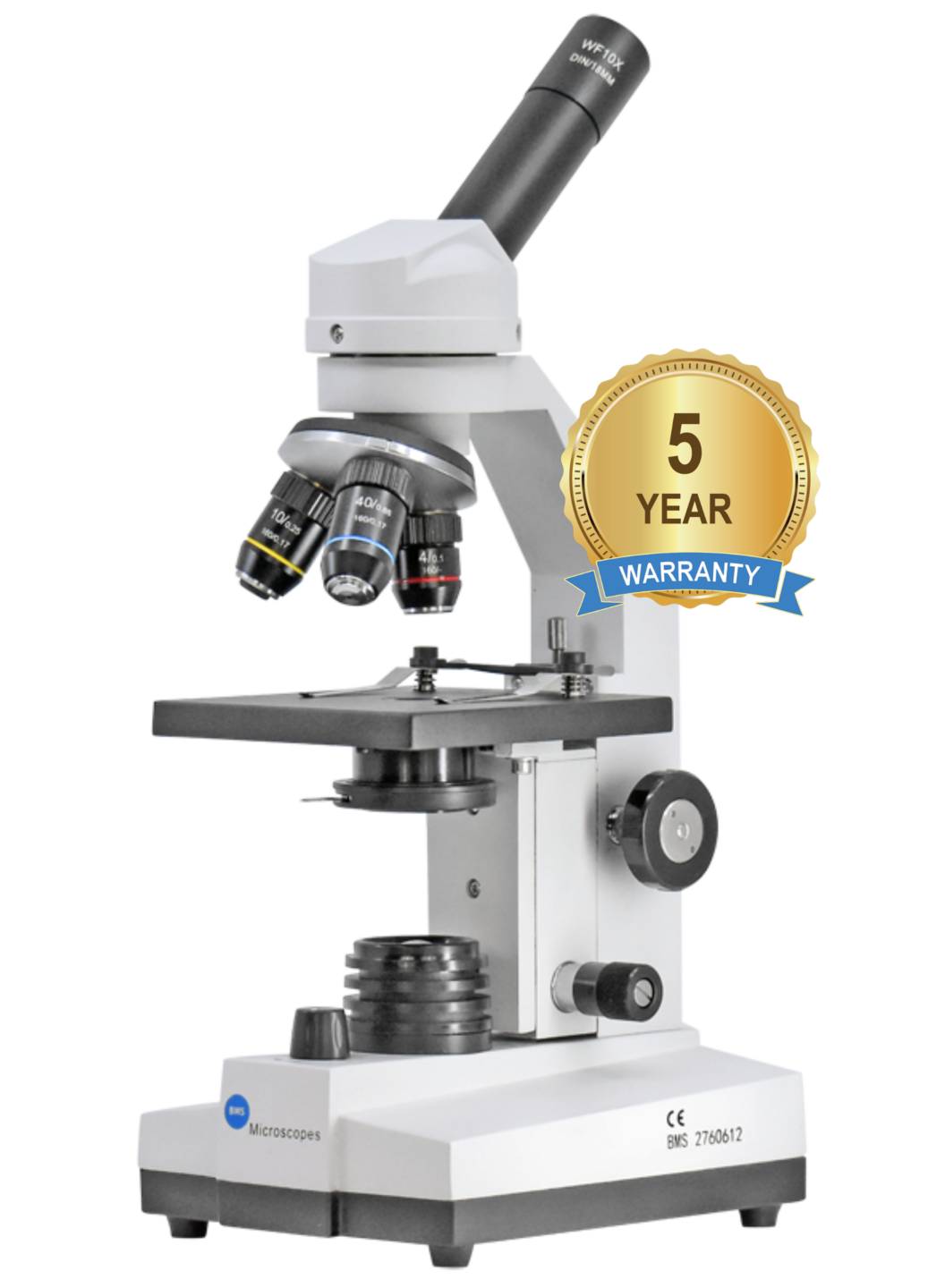

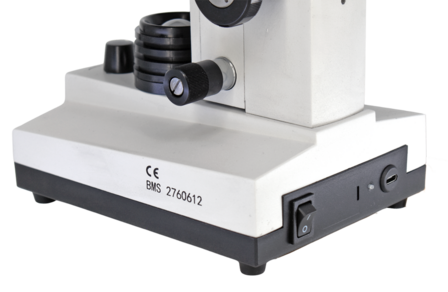

Power System
Power Supply

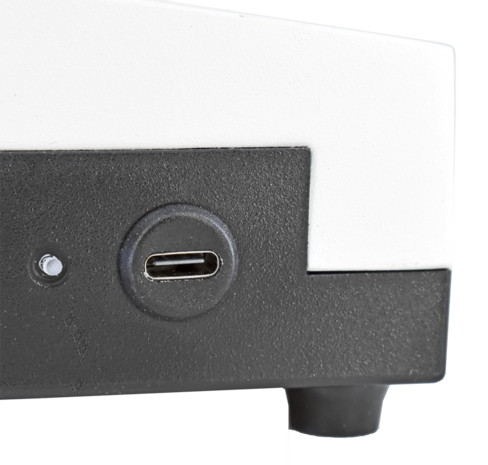

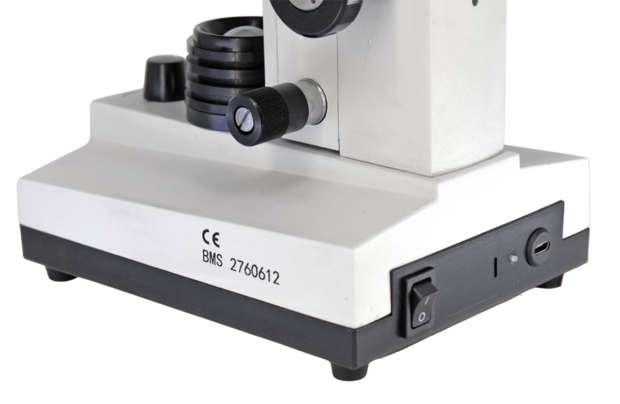

The microscope is supplied with a USB-C to USB-A cable (1.5 m) for direct and convenient power connection. A 5V/2A charger (EU or UK) and rechargeable or standard battery operation are also supported as alternative power solutions.
USB-C to USB-A
1.5 m cable
Included
Charger 5V / 2A
EU or UK
Included

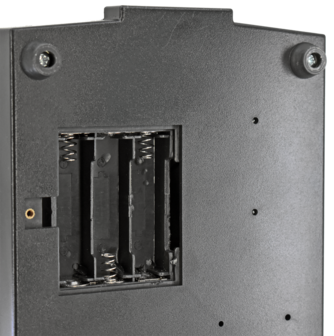

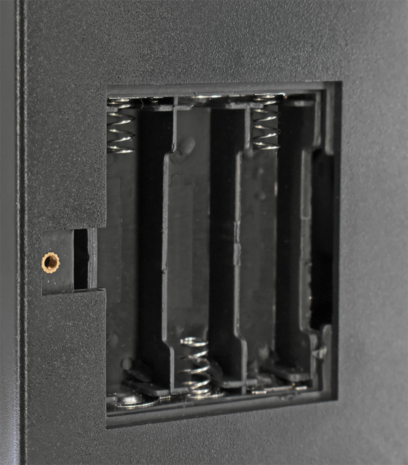

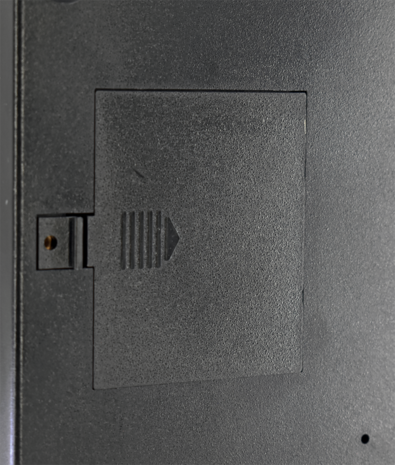

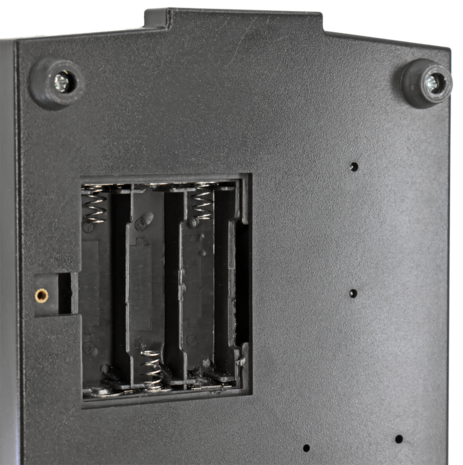

Rechargeable or standard batteries
Optional

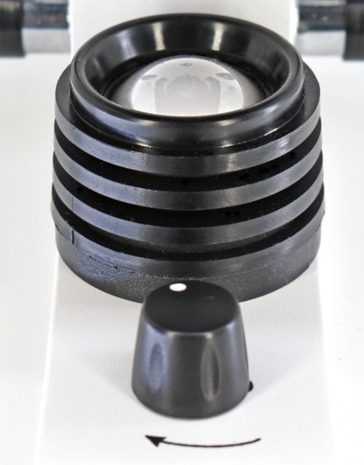

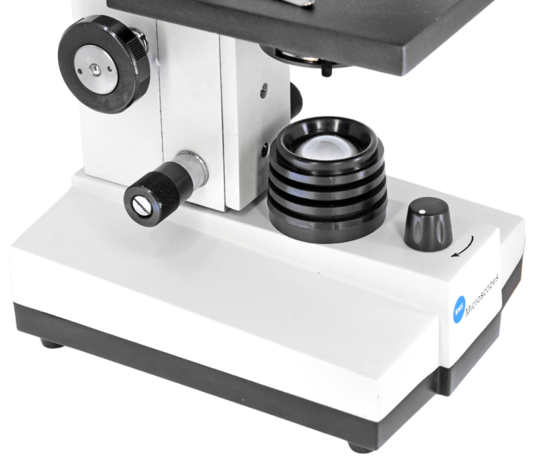

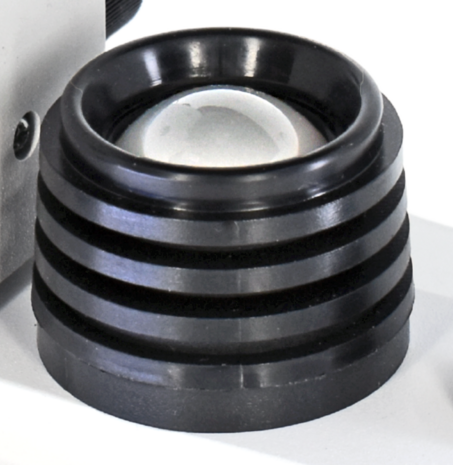

Illumination & power system
High-power LED illumination provides bright, even lighting. USB-C power ensures simple connectivity.
Optical performance & viewing comfort
The optical system delivers clear, bright images for biology education with strong contrast and sharp detail.

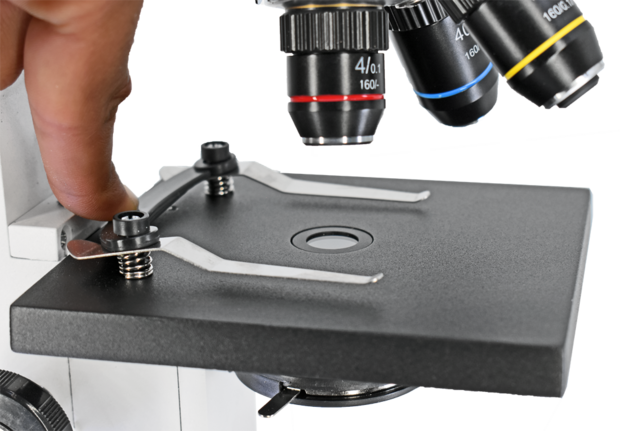

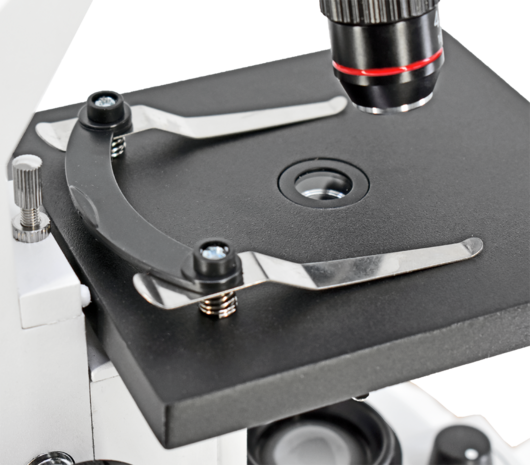

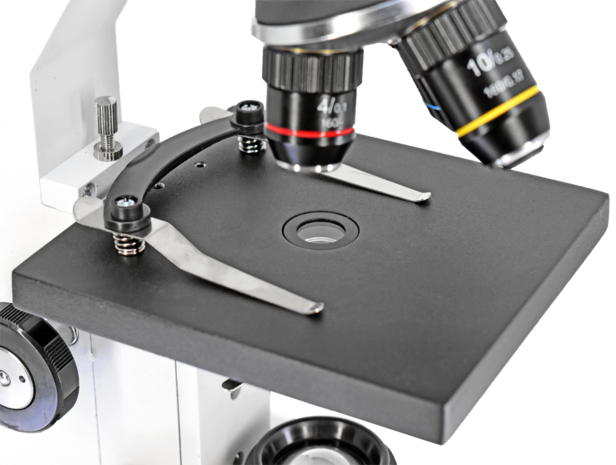

Easy one-finger touch lift
Lift both stage clips simultaneously with one finger, leaving your other hand free to position the slide easily.


SPECIFICATIONS
OBJECTIVES
DIN achromatic 4x, 10x, and 40x objectives.
MAGNIFICATION
Standard magnifications of 40x, 100x, and 400x.
ILLUMINATION

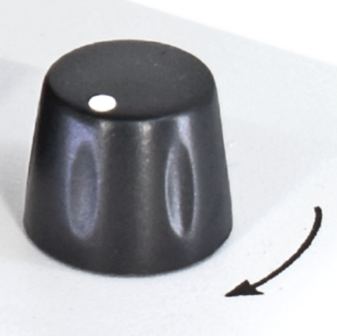

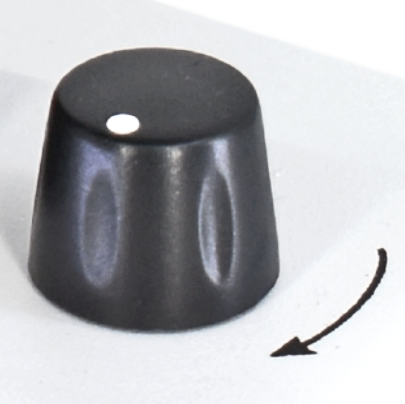

High Power LED illumination with stepless brightness control
FOCUSING SYSTEM
Coarse and fine focus controls with slide protection

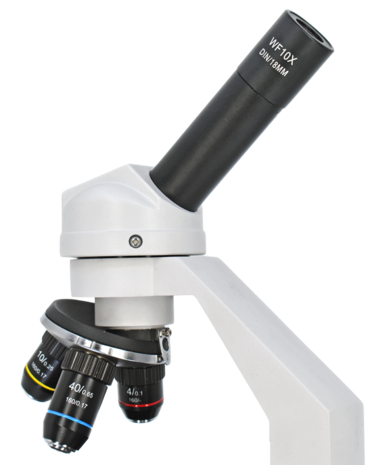

EYEPIECE
WF 10x/18 mm eyepiece with integrated pointer
HEAD
Monocular viewing head with 360° rotation
VIEWING ANGLE
45° inclined tube design supporting ergonomic observation
OPTICAL SYSTEM
Finite 160 mm optical system delivering true-to-life image quality
NOSEPIECE
Triple revolving nosepiece with click stops for objective switching
POWER SUPPLY
USB power connection for continuous operation
ANTIBACTERIAL PROTECTION
Reduces bacterial contamination through an antibacterial surface coating applied to key contact areas.
ANTIFUNGUS OPTICS
Prevents fungal growth on optical components through a protective coating, especially in humid environments.
WARRANTY
5-year warranty supporting long-term educational use
DIMENSIONS
26 x 46 x 18 cm (WxHxD) compact design
WEIGHT
Stable construction with a total weight of 2.9 kg
INCLUDING
Dust cover, user manual and tension key included


Upgrade Possibilities

The microscope can be expanded with optional digital upgrades for imaging and live display applications. The full range of BMS imaging solutions, including HD, Full HD, 4K and WiFi camera systems, is fully compatible and software-ready for seamless integration with the system. The BMS CellPad is also fully supported for live viewing and teaching applications. Everything is prepared for immediate use without additional configuration.

Digital camera
HD / Full HD / 4K imaging options
Software-ready integration – connect and start instantly
Optional upgrade



Dedicated sales & technical support
We help you select the right microscope and accessories for your needs. Spare parts are readily available, while our in-house repair service provides reliable maintenance and long-term product support.

Field of use

Primary Education
Secondary Education
College & University
Laboratory Training
Research
Medical Education (non-diagnostic)
Museums and Learning Centers
Materials Inspection and Study

Target age group

Recommended age
10+ years

Power and operation

USB-C
Cable included
USB-C to USB-A (1.5 m)
Compatible – not included (available separately)
Standard batteries
Compatible – not included (available separately)

Practical features

Ready to use
Classroom sharing optimized
Student-friendly handling
Integrated Kensington lock slot
Yes (lock not included, available separately)
Carrying handle
No
Integrated cable holder
Yes

Digital compatibility

Camera compatible
CellPad compatible

Service and support

Warranty
5 years
Replacement parts available
Yes (subject to BMS support policy)
